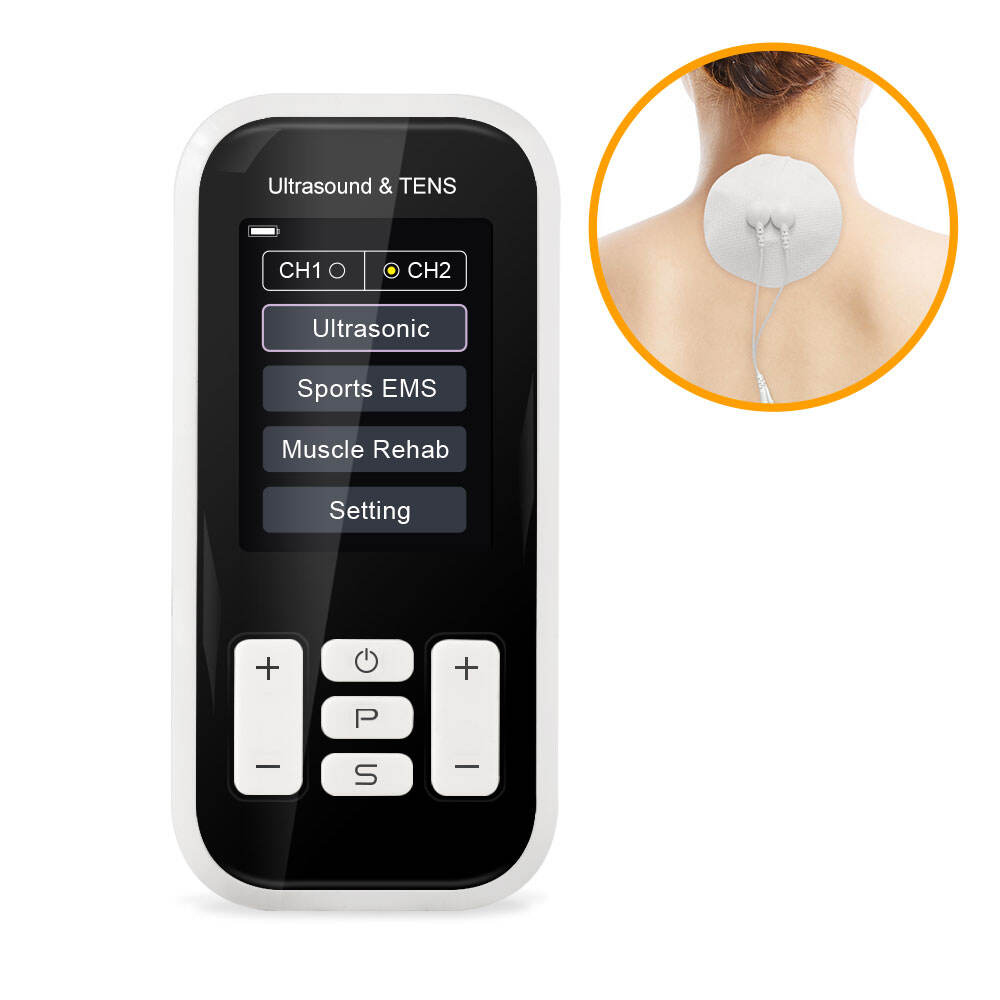

WEARABLE THERAPEUTIC ULTRASOUND with TENS
• Effective pain relief ultrasound and TENS therapy
• Potential alternative to surgery and medications
• Easy to use, does not require medical personnel to apply
• No messy Ultrasound Gel
INDICATIONS FOR USE
The KM300pro is intended to apply ultrasonic energy to generate deep heat within body tissues for the treatment of selected medical conditions such as:
• Pain
• Muscle spasms
• Joint contractures
As TENS device
The KM300pro is commonly used to provide symptomatic pain relief for chronic, acute or post-operative pain.
KM300pro uses ultrasound therapy for the relief of pain and muscle spasms. It was developed as a next generation wearable ultrasound system which transforms conventional therapeutic ultrasound technology into a small and portable ultrasound therapy unit. It is designed to work along with the human body and maximize the safe and effective delivery of a therapeutic effect.
KM300pro is also an effective low frequency muscle stimulator (TENS). This means KM300pro works by producing electrical pulses that stimulate the muscles and nerve fibres in your muscle area.
WEARABLE THERAPEUTIC ULTRASOUND
Targeted therapeutic ultrasound that uniquely generates and delivers localized, low frequency,
low intensity therapeutic ultrasound waves through a self-adhering patch, placed on or next to
the treated area.
TENS Programs
11 Sport STIM Modes + 9 Rehabilitation STIM Modes
TENS stands for Transcutaneous Electrical Nerve Stimulation. TENS can be used to provide symptomatic pain relief including chronic pain, postoperative pain and joint pain.
A low-frequency electric current is delivered through electrodes attached to the painful area.
KM300Pro helps treat the following conditions
Chronic and acute pain Neck and back pain Knee, elbow, shoulder and other joint pain Tendon and muscle pain Sport related injuries Arthritis and tendon inflammation Rheumatic pain Pelvic pain - Pudendal Neuralgia, Abdominal Adhesions, Endometriosis, Interstitial Cystitis Plantar fasciitis Tennis elbow Achilles tendonitis Carpal tunnel syndrome.
How to use
The KM300pro use should start gradually with the first and second treatments lasting 0.5 and 1 hours respectively during day time. Following treatments should be for 1-2 hours on a daily basis and may be done overnight .
Connect the actuator cable to the device socket.
Attach the actuator to the exposed adhesive, the wire aligned with the open notch.
Remove the rest of the protective liner from the patch.
Place and adhere the patch in the painful region
Turn the device ON.
Ultrasonic Technical parameters
Ultrasonic operating frequency and accuracy (MHz) : 3MHz ± 20%.
Transducer emission surface area (cm2) : 5 cm2.
Effective radiation area and accuracy (cm2) : 6 cm2 ± 20%.
Beam non-uniformity ratio and accuracy: BNR: < 5:1 ± 20%.
Output mode :(continuous wave/AM wave) : continuous wave and non-continuous wave, variable duty cycle.
Maximum beam intensity and accuracy (W/cm2) : 0.132W /cm² ± 20%.
Maximum output power (rated output power) and accuracy (W) : 0.65W ± 20%.
AM wave: not AM.
Maximum temperature limit: 44℃.
STIM (Neuromuscular Stimulation) Technical parameters
Amplitude: 0-90 mA into 500 Ohm load.
Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
Pulse width selection: 80-400 μS (5% accuracy)
Pulse rate selection: 2-70 Hz (10% accuracy)
Time: 10 – 60 minutes
Product packaging list:
1 Unit;
1 electrode wire;
1 USB charging cable;
2 electrode pads;
2 Ultrasonic pads;
1 User manual
