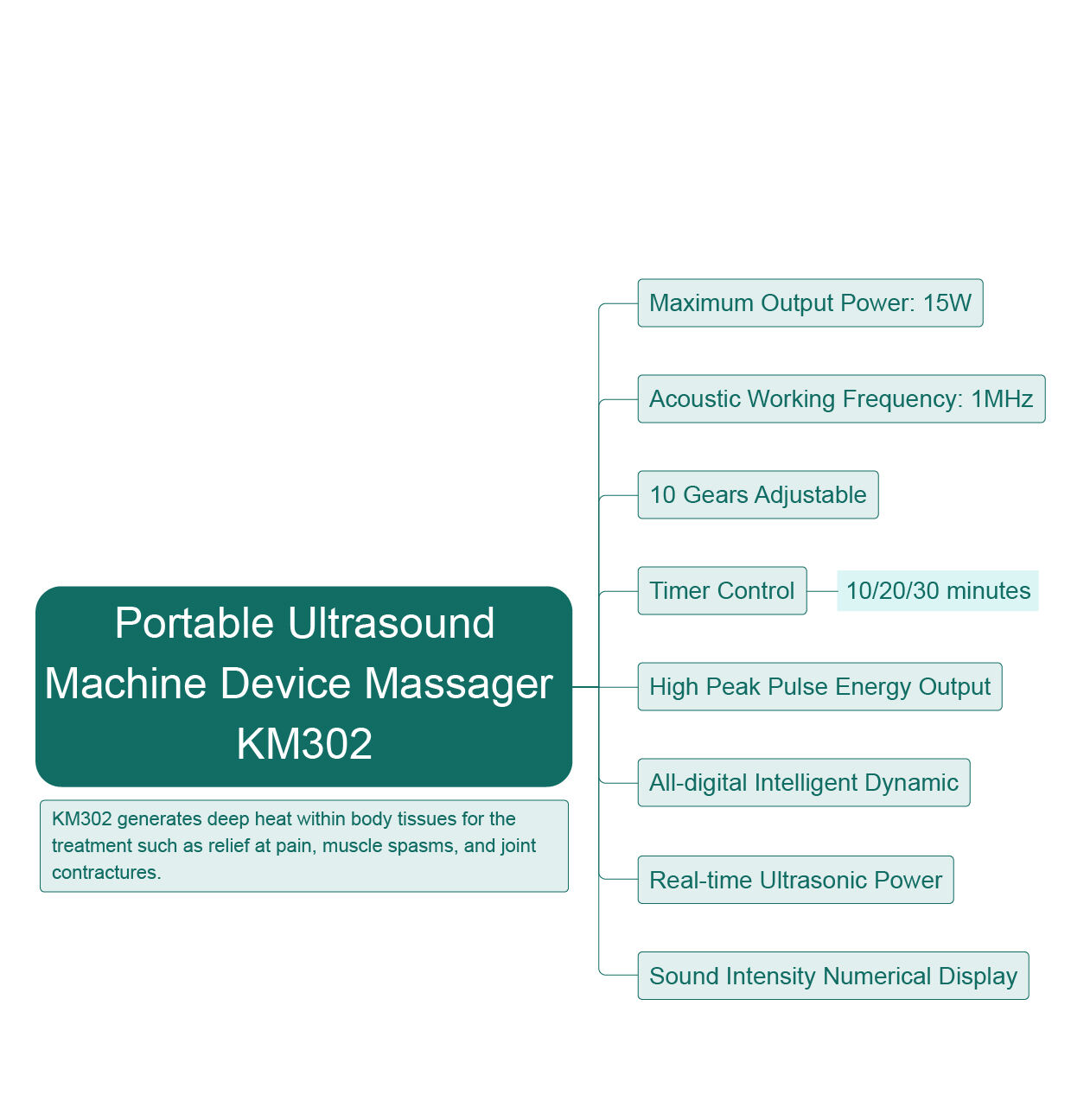

The KM302 is a strong and durable ultrasound in a portable carrying case, gel and an adapter. This portable therapeutic ultrasound device is perfect for home, clinic use or the therapist on the go. Use for advance pain relief using sonic stimulation of soft tissue cells. KM302 generates deep heat within body tissues for the treatment at selected medical conditions such as relief at pain, muscle spasms, and joint contractures.
Product Features
• High peak pulse energy output, super penetrating power to ensure deep curative effect.
• All-digital intelligent dynamic matching to ensure stable ultrasonic energy output.
• Excellent electro-acoustic conversion efficiency, high ultrasonic output energy and low temperature rise.
• No-load protection, the treatment head will automatically stop output when separated from the body.
• Built-in rechargeable lithium Ion battery, more flexible to use.
• 10 gears adjustable; 10/20/30 minute timer control.
What is Ultrasound Therapy?
The ultrasonic treatment head is driven to produce ultrasonic wave by the output of high-frequency ultrasonic eletrical signal, and the mechianical effect, thermal effect and cavitation effect produced by uitrasonic in the tissue ared for phical therapy.
How Does Ultrasound Therapy Work?
High-frequency sound waves are used in ultrasound therapy to penetrate deep into tissue and promote healing. A transducer is coated with gel, and sound waves are directed at the affected area. These waves produce various frequencies, which vibrate or heat the damaged tissue. Vibrations cause tiny bubbles in the surrounding fluid, increasing blood flow and oxygenation to the area and reducing inflammation. Heating also aids in the relief of pain and muscle spasms. The duration and frequency of treatment are determined by the condition and the patient's response.
INDICATIONS FOR USE
The KM302 is intended to apply ultrasonic energy to generate deep heat within body tissues for the treatment of selected medical conditions such as.
--Reduce pain.
--Decrease inflammation.
--Increase soft tissue extensibility and flexibility.
--Improve joint range of motion.
--Facilitate soft tissue repair and wound healing.
Technical parameters
| Item parameter | Specific parameter |
| Rated sound output power (W) | 15.0W (10 levels adjustable) |
| Effective radiation area of ultrasonic transducer（cm2） | 10 |
| Ultrasonic effective sound intensity（W/cm2） | ≤2.5 |
| Usage time（Minute） | 0～30 adjustable |
| Acoustic operating frequency（MHz） | 1 |
| Beam inhomogeneity coefficient | ≤8.0 |
| Maximum beam Intensity (ISATA)（W/cm2） | 20 |
| Beam type | Collimation type |
| Pulse repetition period（ms） | 10 |
| Duty cycle | ≤60% |
| Modulation waveform | Pulse |
| Lithium-ion battery pack | 2200mAH/7.4V |
| Dc power input | dc.24V±0.5V/2.5A |
| Service life of equipment | 6 years |
Frequently Asked Questions
Can I Use Ultrasound Therapy At Home?
Yes, it is possible to use ultrasound therapy at home. Smaller portable units are designed for home use and can be operated by the patient or a caregiver.
Is Ultrasound Therapy Safe?
Ultrasound therapy is generally considered safe for most people when used as directed. It is a non-invasive procedure that promotes healing and reduces pain using sound waves. It does not employ ionizing radiation, and the energy levels are significantly lower than those utilized in diagnostic ultrasound imaging.
Who Shouldn’t Use Ultrasound Therapy?
Certain individuals should not use ultrasound therapy under some conditions. Contraindications for ultrasound therapy include the following.
--Pregnancy.
--Metal Implants.
--Active Infection.
--Malignant Tissues.
