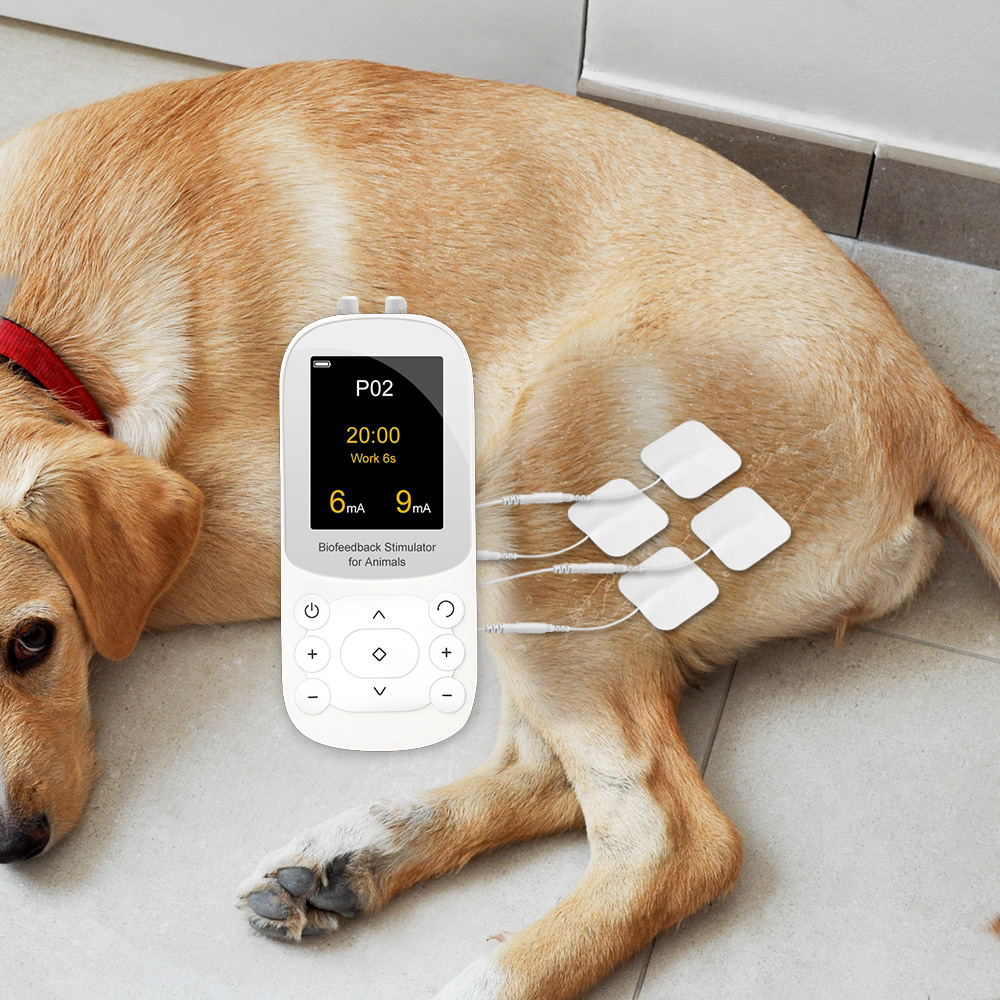

K01 is a device for the muscular and analgesic electrostimulation of pets and horses.
In rehabilitation and veterinary physical therapy the electric current is used for two basic purposes: for the reduction of the pain perception and for the stimulation of excitable tissues (muscles).
The analgesic action is promotedby the electricity through the hyperpolarization of membrane, thanks to the Gate control theory, and by the hyperaemia and the increase of morphine-like mediators.
The device can restore the pet's physical coordination through biofeedback assessment and training. By comparing the healthy limb movement and the injured limb movement, targeted training of the injured parts to achieve the purpose of rehabilitation.
Electrotherapy's Role in Pets Rehabilitation
Electrotherapy can be used for wound healing, pain control or relief, reduction of inflammation, muscle re-education, reversal of atrophy and strengthening. This modality works at many levels, affecting both the sensory and motor nerves. At the cellular level, electrotherapy causes nerve cell excitation and changes in cell membrane permeability, therefore stimulating protein synthesis, osteosynthesis and fibroblast formation. At the tissue level, electrotherapy causes skeletal muscle and smooth muscle contraction. At the segmental level, it facilitates muscle-pumping action, resulting in improved joint mobility as well as circulatory and lymphatic drainage.

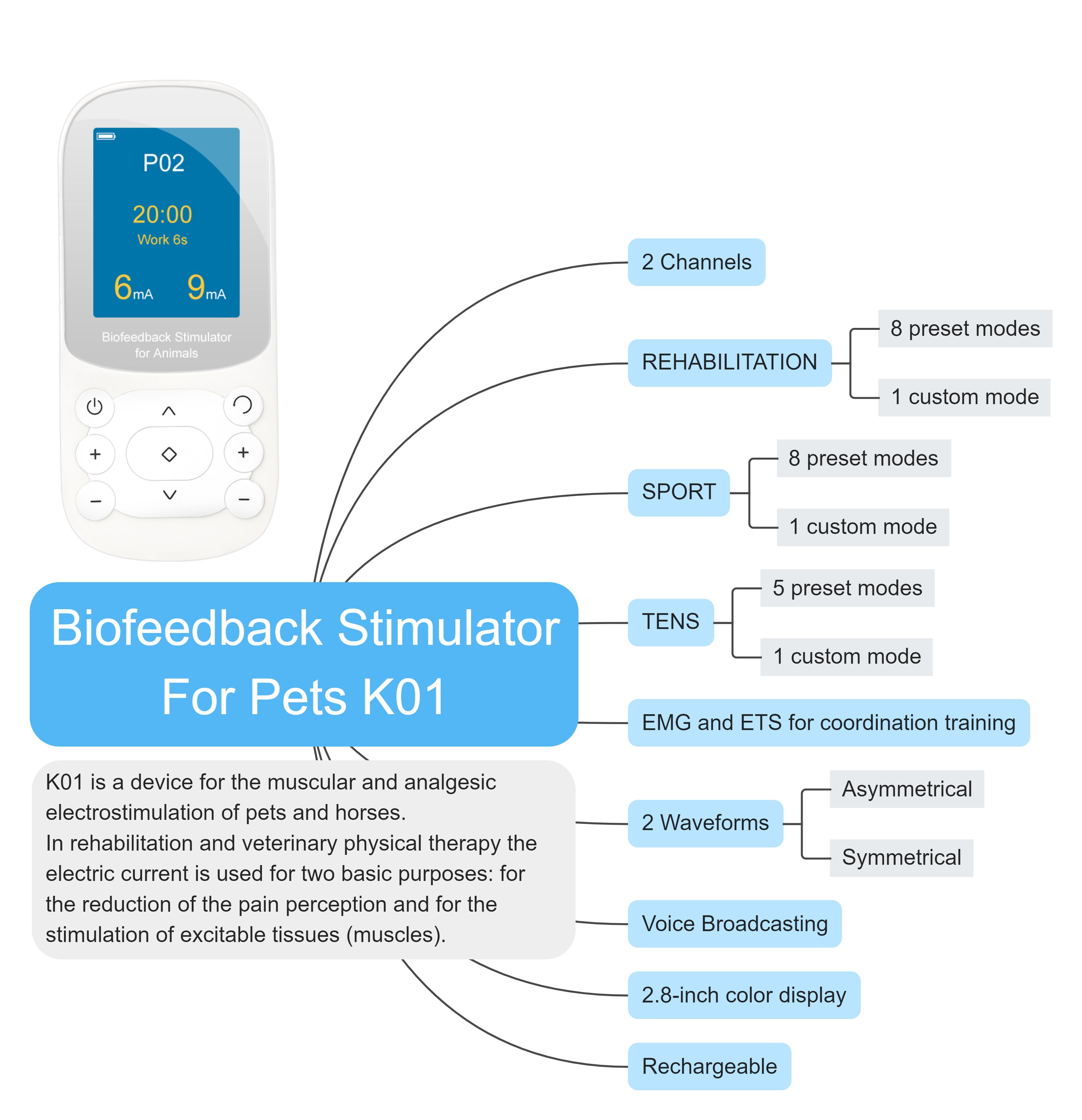

Features:
• 2 channel EMG (Biofeedback) combined with 2 channel STIM (stimulation).
• 2 channel ETS (EMG triggered stimulation) with stimulation on 2 channels.
• 90 levels of electrical stimulation intensity regulation.
• The combination of visual feedback and voice broadcasting promotes the reconstruction of neural function.
• System parameters can be freely set, and training records can be viewed in real-time.
• 2.8-inch color display and 1200mAh large-capacity lithium battery.
• A wide selection of electrode pads are available.
Programs
REHABILITATION (NMES: 8 preset modes and 1 custom mode)
Neuromuscular electrostimulation (NMES) is the use of an electrical current across a muscle causing that muscle to contract.NMES is used to exercise muscles of patients who cannot or should not contract their own muscles. This includes patients affected by paralysis, degenerative muscular diseases, extreme atrophy following injury or surgery, and/or those restricted from activity to allow bone healing. NMES allows muscle mass to be maintained and/or to increase during the recovery phase.
SPORT (EMS: 8 preset modes and 1 custom mode)
EMS stands for electrical muscle stimulation. The device sends signals to your muscles to make them contract. It essentialy mimics the action potential that comes from your central nervous system.EMS devices are effective for muscle building, as strength is developed through the process of the muscles contracting then relaxing.
Here are a number of benefits of EMS, that show the ways this repetitive motion can help the body:
• Muscle Strengthening
• Muscle Rehabilitation
• Relief from Muscle Cramps
• Improving Athletic Performance
• Accelerated Recovery from Injury
• Retraining Muscles
TENS (TENS: 5 preset modes and 1 custom mode)
Transcutaneous Electrical Nerve Stimulation, application of electrical current via electrodes for the purpose of pain control.Gate control theory of pain argues that a low-level constant stimulation of nocioceptor fibres that are sensitive to vibration interferes with other nocioceptor fibres responsible for communicating pain sensation to the brain resulting in decreased pain sensation
STIM MODES FOR PETS
NMES | EMS | TENS |
REHABILITATION | SPORT | TENS |
1. Recovery after ACL surgery | 1.Warm Up | 1.Endorphin |
2. Spinal | 2.Recovery | 2.Anti-accommodation modulated |
3. Contractures | 3.Endurane | 3.Pain 1 |
4. Paretic 1 | 4.Resistance | 4. Pain 2 |
5. Paretic 2 | 5.Strength | 5. Pain 3 |
6. Atrophy recovery | 6.Explosive | PC1 |
7. Muscle rebuilding | 7.Fatigue |
|
8. Relaxing | 8.Agonist |
|
PC1 | PC1 |
TECHNICAL DATA
EMG
Dual channel EMG
EMG Range: 0.2 to 2000 μV RMS (continuous)
Sensitivity: 0.1 μV RMS
STIM (Neuromuscular Stimulation)
2 channel Stimulator
Amplitude: 0-90 mA into 500 Ohm load.
Waveform: 2 waveforms (Asymmetrical, rectangular bi-phasic for early trainer, Symmetrical, rectangular bi-phasic for Rehabilitation trainer)
Pulse width selection: 50-450 μS (5% accuracy)
Pulse rate selection: 2-100 Hz (10% accuracy)
Work / Rest periods: 2-99 seconds
Time: 1 – 99 minutes
List of the device and its components：
1 Main unit
4 Electrode patches
2 Electrode wires (white)
1 REF signal wire (black)
1 USB wire
2 Elastic bands
1 gel bottle
1 User Manual
EN
